Good Resistance Cemented Carbide Drawing Mold Carbide Wear Parts

FOB Reference Price:Get Latest Price
US $35-55 / Kilograms | 1 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Lizhou
Model Number:
Customized
Shaping Mode:
Punching Mold
Product Material:
Metal
Product:
Carbide Drawing Mold
Material:
100% Virgin Tungsten Carbide
Product Name:
Carbide Drawing Mold
Certification:
ISO9001:2008
Usage:
For Drawing Wire Tube Steel Rope
Mould:
Customized
Size:
Standard and Customized
Shape:
Round
Hardness:
87-91.5 HRA
TRS:
1800-2250 N/mm2
Desity:
14.6-14.9 g/cm3
Supply Ability
Supply Ability:
30 Ton/Tons per Month
Packaging & Delivery
Packaging Details
As Export Standard Package or As Requirements
Port
Shanghai, Shenzhen,Guangzhou or As Required
Lead Time :
Within 15 Days after Order Confirmed

Good Resistance Cemented Carbide Drawing Mold Carbide Wear Parts

Product Description






Recommended Grade:  (customized accepted also)

Grade

Grain size(μm)

 Density(g/cm³)

Hardness(>=HRA)

TRS(>=MPA)

LZ10

1.2

14.90

90.0

2400

LZ201.6

14.70

89.0

2800

LZ301.6

14.40

88.2

2850

LZ401.6

14.03

87.0

3100

LZ501.6

13.85

86.2

3000

LL200.8

14.20

93.0

3500

LL500.4

14.85

92.0

2800

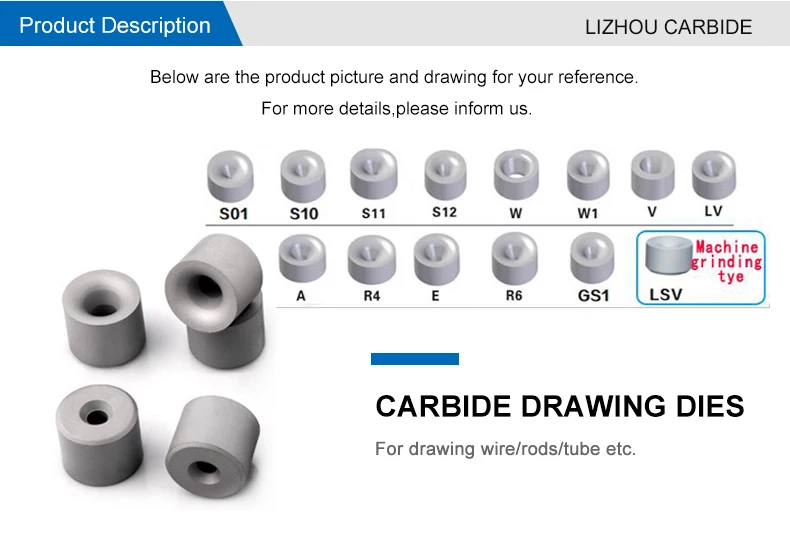

Carbide Drawing Dies Types




Carbide Drawing Dies Feature and Application

1.Superior strength, toughness and wear resistance

2.100% virgin tungsten carbide materials

3.ISO9001:2008 certified professional factory over 20 years

4.Widely used in drawing wires, bars, rods and tubes

5.We accept OEM and ODM as well.






Inner Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

>=0.3~0.4

-0 /+0.08

>16.0~24.0

+0/-0.5

>=0.4~0.6

-0 /+0.08

>24.0~32.0

+0/-0.6

>0.6~3.0

-0 /-0.18

>32.0~40.0

+0/-0.8

>3.0~6.0

-0 /-0.25

>40.0~55.0

+0/-1.2

>6.0~9.0

0/-0.30

>55.0~90.0

+0/-1.5

>9.0~16.0

+0/-0.4

>90.0

0/-2.0

Diameter Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

<=10

-0.15 /+0.15

>35~40

-0.4/+0.4

>10~16

-0 /+0.08

>40~45

+0/-0.6

>16~30

-0 /-0.18

>45~50

-0.6/+0.6

>30~35

-0 /-0.25

>50

-1.3%D/+1.3%D

>9.0~16.0

+0/-0.4

>90.0

0/-2.0

Height  Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

<=10

-0.15 /+0.15

>35~40

-0.4/+0.4

>10~16

-0 /+0.08

>40~45

+0/-0.6

>16~30

-0 /-0.18

>45~50

-0.6/+0.6

>9.0~16.0

+0/-0.4

>90.0
