Compression Mould Shaping Mode and Vehicle Mould Product Tungsten Carbide Wire Drawing Dies

FOB Reference Price:Get Latest Price
  • 1 - 999 Kilograms
    US $49.00
  • >=1000 Kilograms
    US $35.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Lizhou
Model Number:
Customized
Shaping Mode:
Compression Mould
Product Material:
Metal
Product:
Tungsten Carbide Drawing Die, Tungsten Carbide Drawing Die
Material:
100% Virgin Tungsten Carbide
Usage:
For Drawing Wire Rods Tube
Certification:
ISO9001:2008
Size:
Standard and Customized
Shape:
Round Shape
Surface Treatment:
Ground or Unground Carbide Drawing Die
Hardness:
87-91.5 HRA
TRS:
2200-3500 N/mm2
Grade:
YG6 YG8 YG15 YG6X LL20 LL50 K10 K20
Supply Ability
Supply Ability:
300 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Tungsten Carbide Drawing Die Packed in Standard Export Package
Port
Shanghai Shenzhen or As Required
Lead Time :
Shipped in 10 Working Days after Payment in Advance

Compression Mould Shaping Mode and Vehicle Mould Product Tungsten Carbide Wire Drawing Dies

Product Description

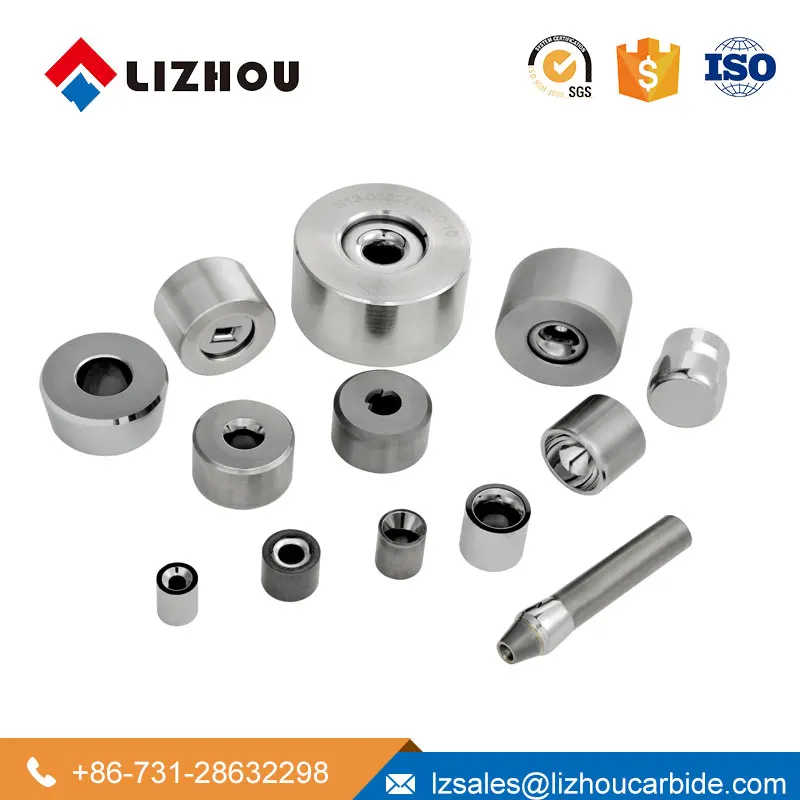

1.jpg2.jpgRecommended Grade:

Grade

Grain size(μm)

 Density(g/cm³)

Hardness(>=HRA)

TRS(>=MPA)

LZ10

1.2

14.90

90.0

2400

LZ201.6

14.70

89.0

2800

LZ301.6

14.40

88.2

2850

LZ401.6

14.03

87.0

3100

LZ501.6

13.85

86.2

3000

LL200.8

14.20

93.0

3500

LL500.4

14.85

92.0

2800



Tungsten Carbide Dies Types:




Carbide Drawing Dies Feature and Application

1. Superior strength, toughness and excellent wear resistance

2. 100% virgin tungsten carbide materials

3. ISO9001:2008 certified professional factory over 23 years

4. Widely used in drawing wires, bars, rods and tubes,special electrode, special drawing shape,poly gonal hole type,etc

5. We accept OEM and ODM as well.

6. Better online service and after-sale service







Inner Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

>=0.3~0.4

-0 /+0.08

>16.0~24.0

+0/-0.5

>=0.4~0.6

-0 /+0.08

>24.0~32.0

+0/-0.6

>0.6~3.0

-0 /-0.18

>32.0~40.0

+0/-0.8

>3.0~6.0

-0 /-0.25

>40.0~55.0

+0/-1.2

>6.0~9.0

0/-0.30

>55.0~90.0

+0/-1.5

>9.0~16.0

+0/-0.4

>90.0

0/-2.0

Diameter Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

<=10

-0.15 /+0.15

>35~40

-0.4/+0.4

>10~16

-0 /+0.08

>40~45

+0/-0.6

>16~30

-0 /-0.18

>45~50

-0.6/+0.6

>30~35

-0 /-0.25

>50

-1.3%D/+1.3%D

>9.0~16.0

+0/-0.4

>90.0

0/-2.0

Height  Size Dimension and Tolerance:

Inner Size Dimension and Tolerance  ( mm)

ID SIZE(mm)

Tolerance(mm)

ID SIZE(mm)

Tolerance

<=10

-0.15 /+0.15

>35~40

-0.4/+0.4

>10~16

-0 /+0.08

>40~45

+0/-0.6

>16~30

-0 /-0.18

>45~50

-0.6/+0.6

>9.0~16.0

+0/-0.4

>90.0
