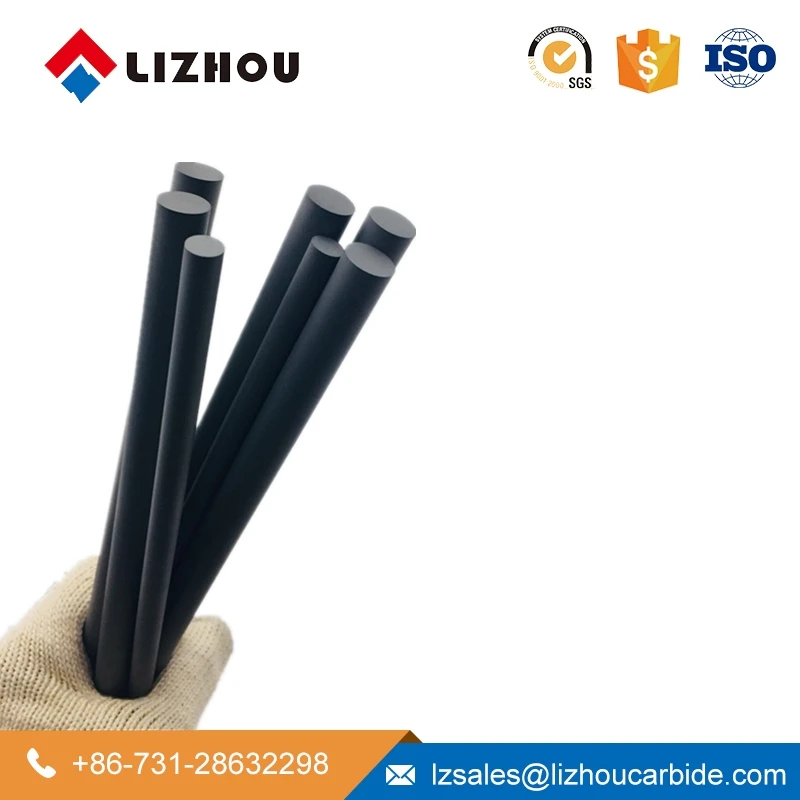

solid unground tungsten carbide rod

FOB Reference Price:Get Latest Price
  • 50 - 499 Kilograms
    $40.00
  • >=500 Kilograms
    $35.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
lizhou
Model Number:
All Various Sizes and Types
Alloy Specification:
YL10.2 LX25 YG6 YG8 K10 K20
Particle:
0.6-1.6 or As Required
Material:
100% Virgin Tungsten Carbide
Product:
Tungsten Carbide Rods
Application:
Drill Bits, End Mills, Reamers, Other Special Cutters
Features:
Good Hardness and Strength
Type:
Solid Tungsten Carbide Rods with 1 Hole
Mgnt Certification:
ISO9001
Surface:
Unground
Hardness:
91.5- 92.5 HRA
Size:
D:3-40mm L:330mm
Color:
Brown or Silver Gray
Supply Ability
Supply Ability:
600 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Packed in Export Standard Package or As Your Requirements
Port
Shanghai Guangzhou Shenzhen or As Required

YL10.2 Sintered solid zhuzhou factory carbide rod for end mill

Product Description



We manufacture ground and unground carbide rods in stock with HIP sintered and 100% virgin material.Our recommend grade for machining carbon steel to aluminum , non-ferrous metals and titanium which cutting tool material HRC<=55. which 10% cobalt, grain size 0.8um, TRS>=3800. The stability and high performance of the series bring many benefits to our customers and inspires them to develop quality products.



 Advantages of product:

1. Adopting spray drying tower granulation, raw material with low oxygen content, contamination, the flowability, apparent density particle and granulate is uniform;

2. Adopting high-precision extrusion molding machine, uniform product density, precise dimension, high roundness, and straightness;

3. Adopting advanced HIP sintering, effectively eliminate the internal holes and defects, the product has good compactness, high strength, good polishing performance;

4. Adopting a special stress-relief process to eliminate the internal stress of products to further enhance the product strength and improve the microstructure;

5. Precision grinding machine processing, ground rod can reach h6 tolerance.





Recommended Grade

GradeGrain size(μm)Density(g/cm³)Hardness(>=HRA)TRS(>=MPA)
YG81.614.8089.02800
YG6X1.014.9090.52300
ZF050.414.8093.03300
LX250.814.5091.33800
YL10.20.814.4091.54000
ZF100.514.2 92.74400



Dimension and Tolerance

Dimension(mm)Tolerance of diameter(mm)Tolerance of length(mm)
Min  BL-Φ3.0×330+0.20/+0.45-0/+5.0
Max  BL-Φ50.0×330+0.20/+0.45-0/+5.0













Our Guarantee
1.  100% raw material.
2.  Sintered in HIP furnace
3.  Feedback within 24 hours
4.  ISO9001: 2008 certificate professional manufacturer over 20 years
5.  Fully adopted in advance technology and equipment.
6.  Quality Control System and strict inspection.

7.  OEM and ODM are accepted as well.
8.  Undertake orders of non-standard sizes at customer's requests.



Tungsten Carbide Rods Application

1. Used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals.

2. Used processed as HSS Cutting tool, carbide end mills, carbide cutting tool, NAS cutting tool, carbide end mill, aerospace cutting tool, carbide drill, high speed steel, milling cutter Core drill, taperd end mills, metric end mills, miniature end mills, pilot reamer, electronics cutter, step drill, metal cutting saw, double margin drill, gun barrel, angle milling cutter, carbide burrs, carbide tipped cutter.



Contact US and put our vast mechanical knowledge and manufacturing experience to work for you. And you will enjoy benefits of good quality and services from our products! ALSO, we warmly welcome you and your drawing papers.
